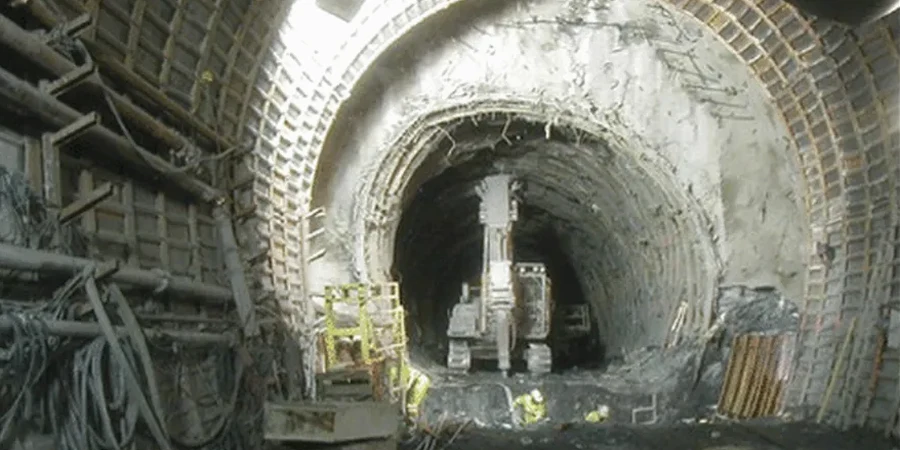

Tunneling through Edmonton means dealing with the legacy of Glacial Lake Edmonton. The city sits on up to 30 meters of soft, compressible glaciolacustrine clays and silts—some of the most challenging soils for underground construction in Western Canada. When you combine that stratigraphy with a shallow groundwater table that fluctuates seasonally along the North Saskatchewan River valley, standard tunnel support assumptions fall apart fast. Our geotechnical analysis for soft soil tunnels targets these exact conditions, providing the deformation parameters and undrained shear strength profiles that TBM operators and NATM designers need before a single cutterhead turns. We pair high-quality Shelby tube sampling with triaxial testing under in-situ stress paths to nail down the stress-strain behavior that controls face stability and surface settlement in the greater Edmonton area.
Glaciolacustrine clays under Edmonton don't follow textbook elastic models—we measure the real Ko and undrained shear strength to keep your settlement trough within spec.
Scope of work in Edmonton
Typical technical challenges in Edmonton
A triaxial cell under back-pressure saturation tells a story that a split-spoon sample never can. When we extract 76 mm Shelby tubes from the Lake Edmonton clay and extrude them in the lab, the first thing we check is sample disturbance—excess pore pressure during reconsolidation is a dead giveaway of a bad specimen. For effective stress analysis of tunnel face stability, we run CIU and CAU tests with pore pressure measurement, following ASTM D4767 protocols. The biggest risk in Edmonton isn't just low strength; it's the time-dependent swelling and softening that occurs when the clay is unloaded during excavation. Our lab quantifies this through swell-consolidation tests and provides the parameters for coupled hydro-mechanical models. Without this data, you're guessing on the stand-up time and the required face pressure for an EPB machine, and that's how you end up with a sinkhole on Jasper Avenue.
Our services
Our Edmonton laboratory and field team provide a complete suite of testing services designed specifically for soft ground tunneling in glaciolacustrine deposits. Every program is tailored to the alignment geology and the selected excavation method.
Advanced Laboratory Testing for TBM and NATM Design
We perform stress-path triaxial testing (CIU, CAU, CAD) on undisturbed Shelby tube samples to determine the effective strength envelope and deformation modulus (E50, Eur) at confining pressures matching the tunnel depth. Additional oedometer and constant-rate-of-strain consolidation tests define the compressibility and creep parameters needed for long-term settlement predictions along the LRT corridors.
Soil Conditioning and Face Stability Assessment
For EPB drives, we evaluate clay plasticity, grain-size distribution, and dispersivity to design the foam and polymer conditioning program. This includes Atterberg limits per ASTM D4318, sedimentation and hydrometer analysis, and direct shear tests on the conditioned soil to verify that the remolded shear strength stays within the target range for screw conveyor control.
Frequently asked questions
How much does a geotechnical lab testing program for a soft ground tunnel in Edmonton cost?
A comprehensive testing program for soft ground tunnels—including triaxial, oedometer, index testing, and a factual geotechnical report—typically runs between CA$5,240 and CA$19,570. The final cost depends on the number of boreholes, sample intervals, and the specific stress path tests needed for your alignment.
What is the biggest geotechnical challenge for tunneling in Edmonton's Lake Edmonton clay?
The low undrained shear strength and high sensitivity of the glaciolacustrine clay are the primary concerns. When this clay is unloaded during excavation, it swells and softens rapidly, reducing stand-up time. Our lab quantifies this behavior through swell-consolidation tests and provides the effective stress parameters for coupled hydro-mechanical models to predict face stability and surface settlement.
Which ASTM standards do you follow for triaxial testing on soft Edmonton clays?
We run consolidated-undrained (CU) and consolidated-drained (CD) triaxial tests per ASTM D4767 and D7181. Pore pressure measurement during shear is standard, and we apply back-pressure saturation to ensure B-values above 0.95. For the Lake Edmonton deposits, multi-stage triaxial tests on single specimens are often used to define the full Mohr-Coulomb envelope from limited Shelby tube samples.
