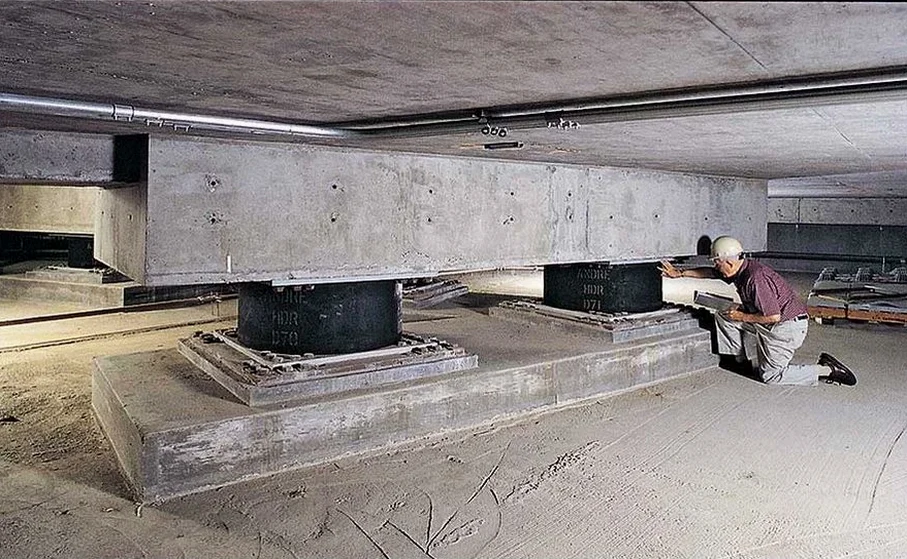

Edmonton sits on a complex stratigraphy of glacial Lake Edmonton and Lake Agassiz deposits, with lacustrine clays reaching thicknesses of 10 to 18 meters in the downtown core. The bedrock — mostly Upper Cretaceous shales and sandstones of the Horseshoe Canyon Formation — lies 15 to 30 meters below grade, and groundwater is often perched within the surficial till. Seismic hazard in the region is moderate: the Geological Survey of Canada assigns a 2% in 50-year PGA of about 0.07g on firm ground, but site amplification from soft clay can push spectral accelerations well above 0.40g at periods of 0.2 to 1.0 seconds. For critical facilities and high-rise structures, base isolation seismic design changes the equation entirely — decoupling the superstructure from ground motion and slashing inter-story drift by a factor of four or more. We run the isolator prototypes through the full ASTM D4014 and CSA A23.3 protocol in our accredited laboratory before a single bearing is cast. For deep soil characterization, we pair the isolation study with a MASW survey that maps the shear-wave velocity profile down to the bedrock contact — essential input for site-specific response spectra.
A well-tuned base isolation system in Edmonton's soft clays can reduce seismic base shear by 60% and keep residual drift below 0.2%, even under the 2475-year event.
Scope of work in Edmonton
Typical technical challenges in Edmonton
Edmonton's downtown core expanded rapidly in the 1970s and 1980s, often with deep foundations that were designed to pre-1985 seismic provisions — essentially gravity-load systems with nominal lateral ties. Retrofitting those towers with base isolation is technically demanding: the existing pile caps must be cut, the column stubs reinforced, and a new isolation diaphragm cast below the basement slab. The biggest hazard during construction is differential settlement when the superstructure is temporarily supported on jacks — in the Lake Agassiz clays, even 2 mm of differential movement can crack the isolator mounting plates. We specify a jacking and transfer sequence synchronized to within 0.5 mm tolerance, with real-time displacement monitoring at all bearing locations. The moat must be waterproofed and drained independently of the foundation drainage, because a clogged moat in a spring thaw can transmit ground motion through hydraulic coupling — effectively short-circuiting the isolation plane. For sites near the North Saskatchewan River valley, where slope creep is active, we add a slope stability analysis to the isolation design brief to ensure the moat retaining walls are not loaded by lateral soil movement over the 75-year design life.
Our services
Our base isolation design package for Edmonton projects covers the full engineering cycle — from site-specific hazard characterization to prototype testing and construction support.
Site-specific seismic hazard analysis
Probabilistic and deterministic hazard assessment using the 6th Generation GSC model, with site amplification factors computed from Vs30 profiles measured in-situ. We deliver uniform hazard spectra at 5% damping for return periods from 475 to 2475 years.
Isolator design and nonlinear time-history modeling
Selection and sizing of lead-rubber bearings, high-damping rubber bearings, and flat sliders. Bi-linear and Bouc-Wen hysteretic models calibrated in ETABS and SAP2000, with 7-pair ground motion suites matched to the target spectrum.
Prototype and production testing supervision
Full ASTM D4014 protocol execution at the manufacturer's facility: compression stiffness, cyclic shear to DBE and MCE displacement, aging and creep tests. We review every hysteresis loop and conditioning run before signing off on production.
Questions and answers
What is the typical cost range for base isolation seismic design for a mid-rise building in Edmonton?
How does Edmonton's clay stratigraphy affect the isolation period and damping requirements?
The soft lacustrine clays in downtown Edmonton amplify ground motion at periods between 0.3 and 1.2 seconds. To avoid resonance, we push the isolated period to 2.8 seconds or longer, well beyond the site's predominant period. This requires bearings with a second shape factor S2 of 5 or higher and lead cores sized to deliver 18–25% equivalent viscous damping at the design displacement. Site-specific response analysis using DEEPSOIL or equivalent software is mandatory — generic code spectra do not capture the amplification troughs caused by the impedance contrast at the clay-bedrock interface.
What testing is required before the isolators can be installed?
CSA A23.3 and ASTM D4014 mandate a two-phase testing program. First, two prototype bearings of each type undergo a full sequence: compression stiffness at 1.0, 1.5, and 2.0 times the design load; cyclic shear at 0.25, 0.50, 0.75, 1.00, and 1.50 times the DBE displacement; and a 10-cycle MCE run. Second, 100% of production bearings are tested to 1.5 times the design displacement for three cycles. Properties must fall within ±15% of the prototype mean. We attend every test day and sign off on the hysteresis loops before the bearings ship to site.
